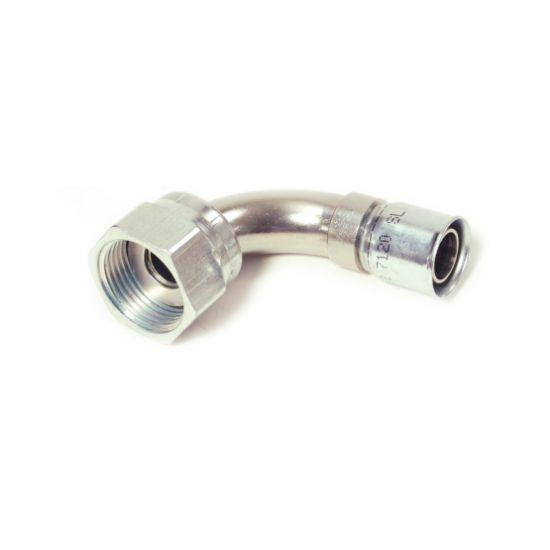

1J991N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	4 in stock

SKU 1J991N-10-10

$77.96/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.5"
Length (inch)	2.18"	Connection 2 Size	1"-14
Product Style	Female Seal-Lok - Swivel - 90° Elbow - Short Drop	For Fluid Type	Gases
Division	Parflex Division	Division	Parflex Division
Shape	Elbow 90° Short Drop	Industry	Food & Beverage
Product Type	Hose Fittings	Technology	Fluid & Gas Handling
Connection Length	38 mm	Coating	Chromium 6 Free-plated
Connection 2 Size	1"-14 inch Thread	Hex Size 1	1-1/8 inch (see drawing legend H)
Application	Tools & Equipment	Specifications Met	n/a
Brand	Parker	Tube Outside Diameter	n/a
Connection 2 Type	Seal-Lok®	Connection 1 Size	-10 (Size)
Hex Size	n/a	Body Material	Steel
Connection 1 Type	Hose	Fitting Length	2.18 inch (see drawing legend A)
Maximum Operating Pressure	20.7 MPa	Dimensional Weight	0.0522 lb
Configuration	Hose to Port	Product Series	91N
