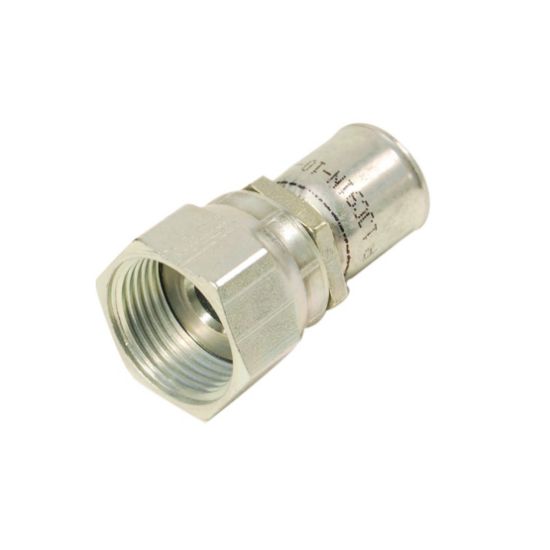

1JC91N-4-4C - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	160 in stock

SKU 1JC91N-4-4C

$125.28/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1/4"
Product Style	Female Seal-Lok - Swivel - Straight - Short	Connection 2 Size	9/16"-18
Length (inch)	1.46"	Division	Parflex Division
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Fluid Control
Product Type	Hose Fittings	Product Series	91N
Maximum Operating Pressure	3000 psi (Dependent on hose)	Body Material	n/a
Specifications Met	n/a	Industry	Semiconductor
Dimensional Weight	0.0104 lb	Shape	Straight
Configuration	Hose to Port	For Fluid Type	Water
Connection 1 Size	3/16 inch Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	9/16"-18 inch Thread	Connection 2 Type	Female
Hex Size	9/16 inch (see drawing legend J)	Coating	n/a
Hex Size 1	7/16 inch (see drawing legend H)	Fitting Length	30 mm
Connection Length	5/8 inch Cut-off allowance (see drawing legend B)	Tube Outside Diameter	n/a
