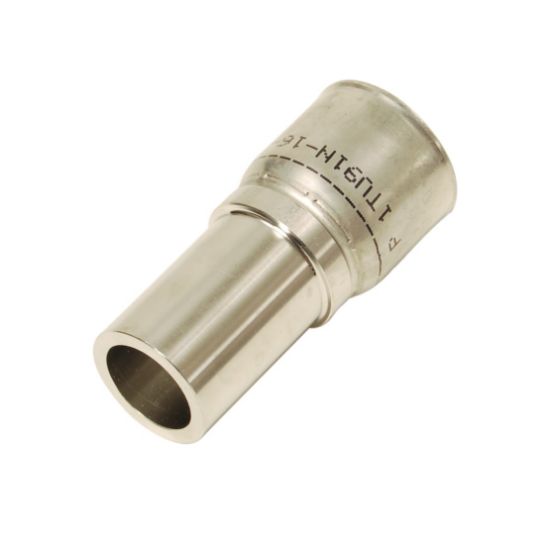

1TU91N-4-4C - Permanent Fittings for PTFE Hose - 91/91N

Name: 1TU91N-4-4C - Permanent Fittings for PTFE Hose - 91/91N
SKU: 1TU91N-4-4C
Price: 42.34 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

12 in stock

Kansas City, KS	7
Wichita, KS	3
Decatur, IL	2

Partner Available:

156 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1TU91N-4-4C

$42.34/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	3/16"
Length (inch)	1.63"	Connection 2 Size	1/4"
Product Style	Universal Tube Stub	Hex Size 1	n/a
Connection 2 Type	Male	Connection 1 Size	4.8 mm
Hex Size	n/a	Product Type	Hose Fittings
Technology	Fluid & Gas Handling	Dimensional Weight	0.054 lb
Configuration	Hose to Port	Product Series	91N
Application	Pneumatics	Brand	Parker
Tube Outside Diameter	1/4 inch	Specifications Met	n/a
Division	Parflex Division	Shape	Stub End
Industry	Healthcare & Life Sciences	Body Material	n/a
Connection 1 Type	Hose	Maximum Operating Pressure	3000 psi (Dependent on hose)
Fitting Length	1.63 inch (see drawing legend A)	Connection Length	1-1/16 inch Cut-off allowance (see drawing legend B)
Coating	n/a	For Fluid Type	Air (Pneumatic Media)
Division	Parflex Division	Connection 2 Size	1/4 inch Thread
