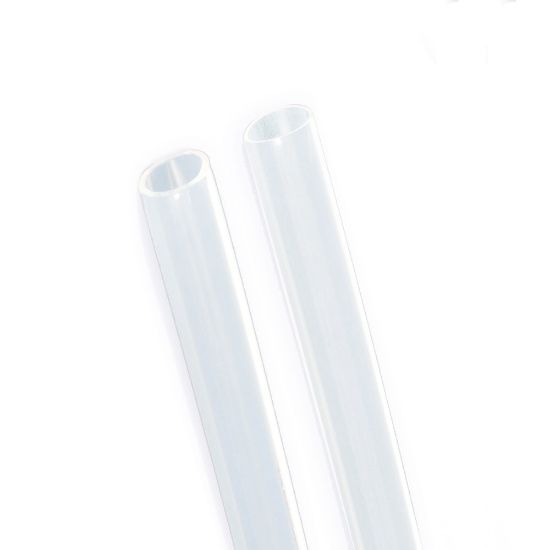

104-0156031-NT-100 - PFA Tubing

PFA Tubing - Series 104 and 204 are used when temperature and clarity are both factors. PFA tubing withstands the same high-temperatures as PTFE tubing but, like FEP tubing, is very clear and available in long continuous lengths.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 104-0156031-NT-100

$2.10/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	5/32
Product Type	Industrial Wall	Tube Wall Thickness	0.031
Tube Inside Diameter	0.094	Standard Pack Qty (ft)	100.0
Tube Outside Diameter	0.157	Application	Flow Monitoring
Media	Chemicals	Maximum Operating Pressure	27 bar
Maximum Operating Temperature	500 °F	Minimum Operating Temperature	-100 °F
Specifications Met	USP Class VI	Weight	0.011 lb/ft
Color	Clear	Tube Material	Perfluoroalkoxy Alkanes (PFA)
Compatible Fitting	Compress-Align®	Minimum Bend Radius	16 mm
Tube Outside Diameter	3.99 mm	Length per Package	100 ft
Tube Inside Diameter	0.094 inch	Minimum Burst Pressure	108 bar
