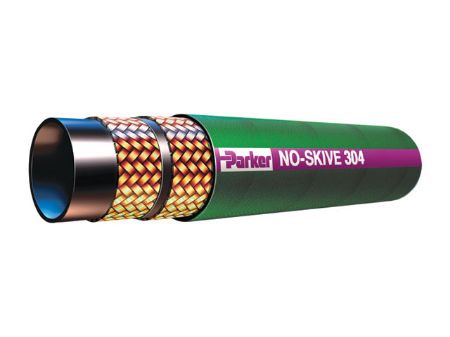

Phosphate-Ester Hose 1125-5000 PSI - 304 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 304 hose is a phosphate-ester compatible hose that has a pressure range of 1125-5000 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 304 hose is reinforced with two steel braids and has an EPDM rubber cover making it extremely durable. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.
Markets:
• Ground Support Equipment
• Industrial
Features/Benefits:
• 1125-5000 PSI in different sizes
• Dimensionally conforms with 100R2 Type AT specification
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
Applications:
• Phosphate-ester base hydraulic fluids
Compatible Fittings:
• 43 series fittings
Read More...Markets:
• Ground Support Equipment
• Industrial
Features/Benefits:
• 1125-5000 PSI in different sizes
• Dimensionally conforms with 100R2 Type AT specification
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
Applications:
• Phosphate-ester base hydraulic fluids
Compatible Fittings:
• 43 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Inside Diameter | Weight | Maximum Operating Pressure | Cover Color | Hose Reinforcement Material | Specifications Met | Application | Outside Diameter | Nominal Hose Inside Diameter | Media | Minimum Operating Temperature | Minimum Bend Radius | Cover Material | Division | Maximum Operating Temperature | Hose Inner Tube Material | Compatible Fitting | Working Pressure | Inner Diameter | Material | Pkg Qty/UOM | Pkg Qty | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Series | Working Pressure Range | Application | Hose Pressure Range | Hose Category |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 304-10 | 3 in stock | 2 Limited Stock | $31.40/foot | FT | FT | -10 | 16 mm | 0.79 kg/m | 2750 psi | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 25 mm | 16 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °F | 200 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 176 °F | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 5000 PSI (340 bar) | 0.625 Inch | Rubber | 300 FT | 300 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | 304 | > 5000 PSI (345 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-12 | 188 in stock | 192 in stock | $41.70/foot | FT | FT | -12 | 3/4 inch | 1 kg/m | 15.5 MPa | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 29 mm | 19 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °C | 240 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 80 °C | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 2250 PSI (160 bar) | 0.75 Inch | Rubber | 175 FT | 175 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 304 | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-16 | 59 in stock | 113 in stock | $53.79/foot | FT | FT | -16 | 1 inch | 1 lb/ft | 2000 psi | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 1.5 inch | 25 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °F | 300 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 176 °F | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 2000 PSI (140 bar) | 1 Inch | Rubber | 135 FT | 135 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 304 | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-20 | Backordered | 11 in stock | $121.92/foot | FT | FT | -20 | 31.5 mm | 1.73 kg/m | 1625 psi | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 1.860 inch | 31 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °C | 420 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 80 °C | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 1625 PSI (110 bar) | 1.25 Inch | Rubber | 50 FT | 50 | Fluid Connector | Inch | Hose Products | 1.25 Inch | Inch | Rubber | 304 | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-24 | Backordered | 63 in stock | $140.28/foot | FT | FT | -24 | 1-1/2 inch | 1.44 lb/ft | 8.6 MPa | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 2.140 inch | 38 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °F | 500 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 80 °C | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 1625 PSI (110 bar) | 1.5 Inch | Rubber | 50 FT | 50 | Fluid Connector | Inch | Hose Products | 1.5 Inch | Inch | Rubber | 304 | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-32 | Backordered | 4 in stock | $161.93/foot | FT | -32 | 51 mm | 1.99 lb/ft | 1125 psi | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 2.640 inch | 51 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °F | 25 inch | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 176 °F | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | ||||||||||||||||||
| 304-4 | 121 in stock | 954 in stock | $19.00/foot | FT | FT | -4 | 6.3 mm | 0.39 kg/m | 34.5 MPa | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 0.590 inch | 6 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °C | 100 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 80 °C | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 5000 PSI (340 bar) | 0.25 Inch | Rubber | 200 FT | 200 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 304 | > 5000 PSI (345 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-6 | 323 in stock | 362 in stock | $22.29/foot | FT | FT | -6 | 10 mm | 0.55 kg/m | 4000 psi | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 0.750 inch | 10 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °F | 130 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 176 °F | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 4000 PSI (280 bar) | 0.375 Inch | Rubber | 200 FT | 200 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 304 | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-8 | 157 in stock | 508 in stock | $25.64/foot | FT | FT | -8 | 12.5 mm | 0.45 lb/ft | 24 MPa | Green | 2 Braids of Steel Wire | n/a | Phosphate Ester | 22 mm | 12 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | -40 °C | 180 mm | Ethylene Propylene Diene Monomer (EPDM) | Hose Products Division | 80 °C | Ethylene Propylene Diene Monomer (EPDM) | 43 Series | 3500 PSI (240 bar) | 0.5 Inch | Rubber | 200 FT | 200 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 304 | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester |
