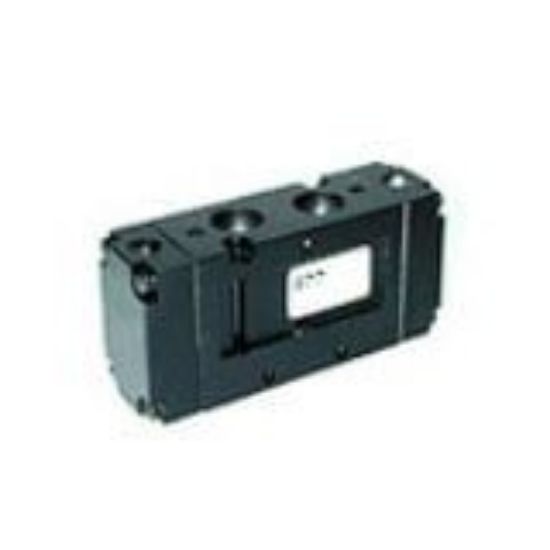

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PHP520D-02

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU PHP520D-02

$232.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Anodized Aluminum
Number of Positions	2 Position Double Remote Air	Media	Air
Port Size	1/4 Inch	Pressure Rating	22 to 130 psi
Minimum Operating Temperature	41 °F	Mounting Option	Inline
Valve Type	2-Way	Maximum Operating Temperature	160 °F
Override Functionality	Non-Lock (Standard), Lever-Lock (Option)	Actuation Type	Air Operated
Lubricant	Non-Lubricated or Lubricated Air	Flow Coefficient	1 Cv
Number of Ports	5	Port Type	PT
Seal Material	Nitrile
