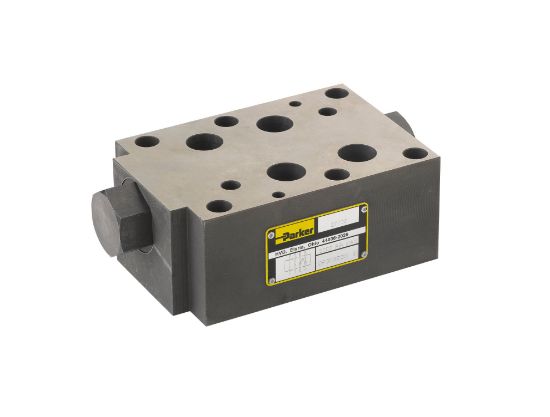

CPOM6AAV - Pilot Operated Check Valve - Series CPOM (N.A.)

Parker's pilot operated check valves series CPOM in sandwich design ensure an easy configuration of stack systems and provide a very good price-performance ratio.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU CPOM6AAV

$2,046.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Poppet Style	A port only
Connection Size	CETOP 03 (NG06)	Cracking Pressure	5 PSI (0.3 BAR)
Maximum Flow Rate	60 GAL/MIN (227 L/MIN)	Maximum Operating Pressure	3000 PSI (205 BAR)
Minimum Operating Temperature	-4	Mounting Type	Subplate
Opening Pressure Ratio	3:1	Actuation Type	Hydraulic Pressure
Product Series	Check valve	Body Material	Steel
Weight	21	Maximum Operating Pressure	3000
Division	Hydraulic Valve Systems Division	Operation Type	Pilot
Maximum Operating Temperature	158	Connection Type	N/A
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	60
Seal Material	Nitrile	Poppet Style	A port only
Flow Direction	N/A	Connection Size	CETOP 08 (NG25)
Cracking Pressure	5

Product resources

Literature and Reference Materials

MSG14-2500/US Industrial Hydraulic Valves (PDF)
