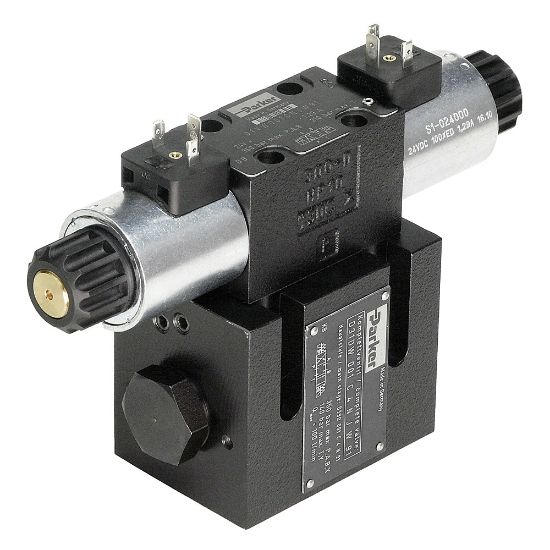

D31DW004C4NJDLJ5 - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU D31DW004C4NJDLJ5

$1,906.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Size	NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port	Maximum Flow Rate	30 gal/min
Maximum Operating Pressure	5742 psi/ 345 bar	Spool Code	4-Way
Actuation Type	Hydraulic Pressure	Body Material	Gray Iron
Weight	12	Maximum Operating Pressure	5000
Additional Options	Consult catalog for additional features.	Valve Type	Pilot Operated Directional Control Valve
Coil Specifications Met	Omit	Division	Hydraulic Valve Systems Division
Spool Position	3-Position	Connection Type	Desina
Maximum Flow Rate	30	Solenoid Option	High Watt (standard)
Maximum Operating Temperature	140	Options	Signal Lights
Seal Material	Nitrile	Power Supply Voltage	24
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Minimum Operating Temperature	-4
Mounting Type	Subplate
