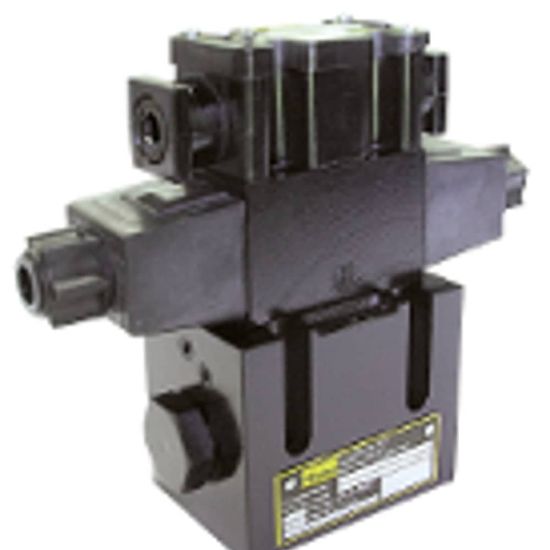

D31DW004C4NJW - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D31DW004C4NJW

$1,428.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Size	NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port	Maximum Flow Rate	30 gal/min
Maximum Operating Pressure	5748 psi/ 345 bar	Maximum Operating Pressure	5000
Spool Code	4-Way	Actuation Type	Hydraulic Pressure
Body Material	Gray Iron	Weight	12
Additional Options	Consult catalog for additional features.	Valve Type	Pilot Operated Directional Control Valve
Connection Type	DIN w/o Plug	Spool Position	3-Position
Maximum Flow Rate	30	Coil Specifications Met	Omit
Maximum Operating Temperature	140	Seal Material	Nitrile
Division	Hydraulic Valve Systems Division	Power Supply Voltage	24
Solenoid Option	High Watt (standard)	Options	Omit
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Minimum Operating Temperature	-4
Mounting Type	Subplate
