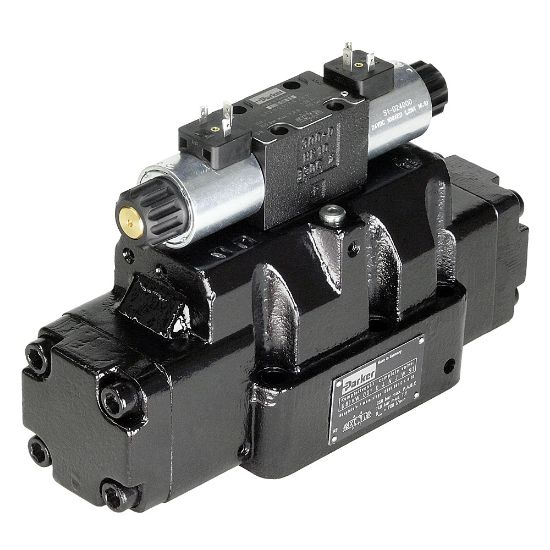

D81VW001C4NYW3A - Pilot Operated Directional Control Valve - D81VW Series

Parker’s D81VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU D81VW001C4NYW3A

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Maximum Operating Pressure	5000 PSI	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Maximum Flow Rate	160 GPM	Division	Hydraulic Valve Systems Division
Additional Options	Consult catalog for other available features	Connection Type	DIN w/o Plug
Valve Type	Pilot Operated Directional Control Valve	Body Material	Grey Iron
Power Supply Voltage	120/60 - 110/50 VAC	Solenoid Option	Omit - High Watt
Options	Pilot Choke Meter Out	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Seal Material	Nitrile	Spool Position	Double solenoid, 3 position, spring centered
Maximum Flow Rate	160	Coil Specifications Met	Omit - Standard Valve
Maximum Operating Temperature	+140	Minimum Operating Temperature	-4
Mounting Type	Subplate	Pilot Inlet / Drain Locations	Internal Pilot, Internal Drain
Maximum Operating Pressure	5000	Actuation Type	Hydaulic Pressure
Spool Code	001 - 4-way, 3 position; All Ports Blocked	Weight	43.2
