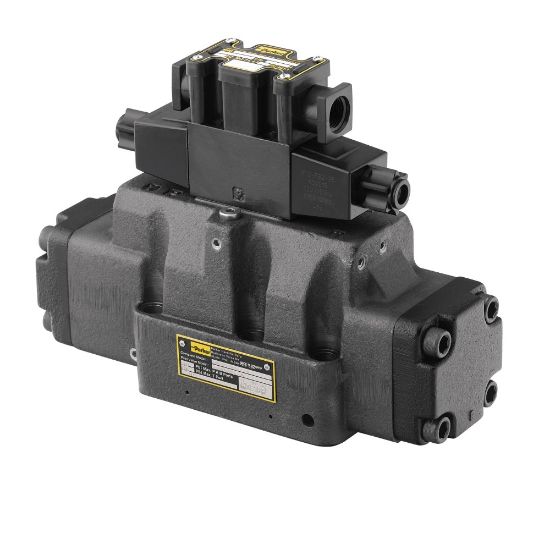

D81VW002C3NYCF3D - Pilot Operated Directional Control Valve - D81VW Series

Parker’s D81VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU D81VW002C3NYCF3D

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Maximum Operating Pressure	5000 PSI	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Maximum Flow Rate	160 GPM	Power Supply Voltage	120/60 - 110/50 VAC
Solenoid Option	Low Watt	Options	Stroke Adjust B end
Seal Material	Nitrile	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Maximum Operating Temperature	+140	Coil Specifications Met	Omit - Standard Valve
Division	Hydraulic Valve Systems Division	Spool Position	Double solenoid, 3 position, spring centered
Maximum Flow Rate	160	Pilot Inlet / Drain Locations	External Pilot, Internal Drain
Minimum Operating Temperature	-4	Spool Code	002 - 4-way, 3 position; All Ports Open
Actuation Type	Hydaulic Pressure	Maximum Operating Pressure	5000
Mounting Type	Subplate	Additional Options	Consult catalog for other available features
Valve Type	Pilot Operated Directional Control Valve	Connection Type	Leadwire Conduit Box
Body Material	Grey Iron	Weight	43.2

Product resources

Literature and Reference Materials

Pilot Operated Directional Control Valve Catalog - D81VW Series (PDF)
OPERATING INSTRUCTIONS - DCV Series D1VW / D1DW / D3W / D3DW / D31DW / D41VW / D81VW / D91VW (PDF)
