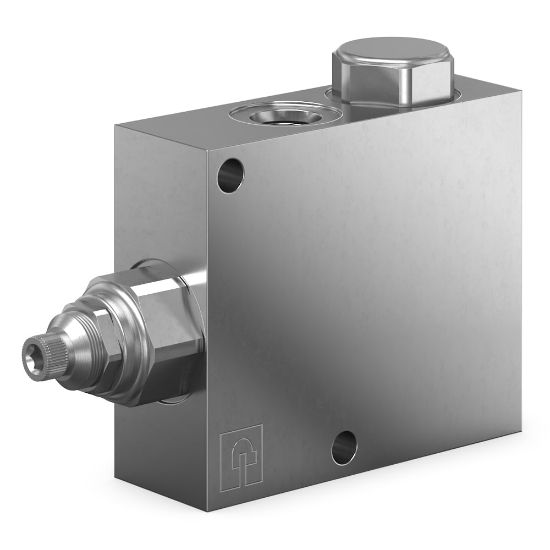

PRCH101T20V-8T - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 351 days
Partner Available:	Backordered

SKU PRCH101T20V-8T

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Tamper Resistant	Cracking Pressure	5 PSI, 0.3 BAR
Flow Rate	15 GAL/MIN, 56.3 L/MIN	Mounting Type	Line Mounted
Pressure Control Range	400-2000 PSI, 27-138 BAR	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Fluorocarbon
Maximum Pressure Setting	138 bar	Leak Rate	N/A cc/min
Maximum Flow Rate	15 Gal/min	Function	Pilot Operated
Maximum Tank Pressure	5000 psi	Maximum Inlet Pressure Rating	380 bar
Body Material	Steel	Division	Hydraulic Systems Division
Installation Torque	N/A Nm	Operation Type	Automatic
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Standard Setting Pressure	69 bar
Division	Hydraulic Cartridge Systems Division	Maximum Drain Flow Rate	0.25 Gal/min
Pressure Control Range	27-138 bar	Flow Rate	56.3 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Sensitivity	39.3 per turn bar
Actuation Type	Pressure Sensing	Operating Temperature	-26 to +204 °C
Configuration	Pressure Reducing/Relieving w/Reverse Flow Check	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	2.2 lb	Maximum Operating Pressure	5000 psi
Cracking Pressure	5 psi	Mounting Type	Line Mounted
Port Thread Size	SAE-8	Adjustment Mechanism	Tamper Resistant
Cavity Size	N/A	Minimum Operating Temperature	-26 °C
