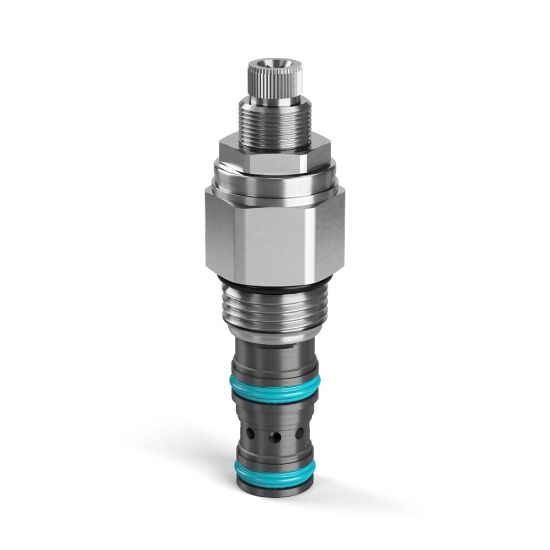

PRH082K10 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	10 in stock

SKU PRH082K10

$124.41/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Division	Hydraulic Systems Division
Operation Type	Automatic	Standard Setting Pressure	34.5 bar
Maximum Drain Flow Rate	0.56 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+200 °F	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	30 L/min	Operating Temperature	-37 to +93 °C
Flow Rate	30 L/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Pressure Sensing	Configuration	Pressure Reducing
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Sensitivity	369 per turn psi
Body Material	N/A	Installation Torque	32-36 lb-ft
Weight	0.11 kg	Maximum Operating Pressure	350 bar
Adjustment Mechanism	Knob	Cavity Size	C08-3
Minimum Operating Temperature	-37 °C	Mounting Type	Screw in cartridge valve
Pressure Control Range	100-1000 psi	Maximum Inlet Pressure Rating	5500 psi
Seal Material	D-ring (Standard)	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Pressure Setting	1000 psi	Maximum Tank Pressure	350 bar
Function	Pilot Operated
