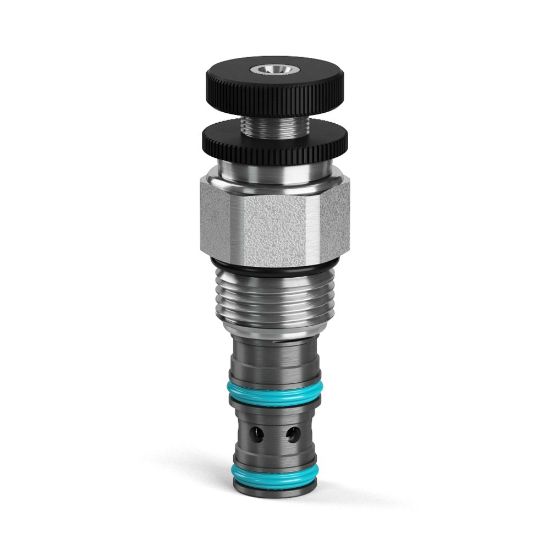

PRH102S50 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	13 in stock

SKU PRH102S50

$87.09/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Seal Material	D-Ring (Standard)	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	1200-5000 PSI, 82.8-350 BAR	Maximum Flow Rate	15 Gal/min
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	+200 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel.
Seal Material	D-ring (Standard)	Maximum Tank Pressure	5000 psi
Maximum Inlet Pressure Rating	380 bar	Maximum Pressure Setting	5000 psi
Weight	0.5 lb	Maximum Operating Pressure	350 bar
Installation Torque	69-75 Nm	Body Material	N/A
Maximum Drain Flow Rate	0.25 Gal/min	Standard Setting Pressure	172.4 bar
Division	Hydraulic Systems Division	Operation Type	Automatic
Pressure Control Range	82.8-350 bar	Mounting Type	Screw in cartridge valve
Configuration	Pressure Reducing	Pressure Control Sensitivity	1996 per turn psi
Actuation Type	Pressure Sensing	Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-37 to +93 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Function	Pilot Operated
Adjustment Mechanism	Screw	Minimum Operating Temperature	-35 °F
Cavity Size	C10-3
