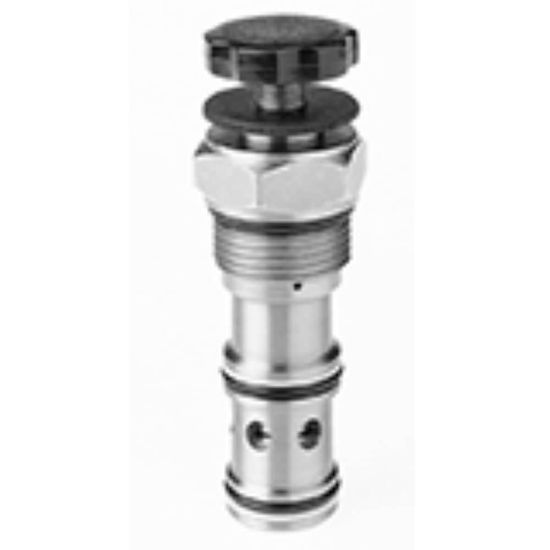

PRH162K30 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PRH162K30

$198.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Knob	Flow Rate	40 GAL/MIN, 150 L/MIN
Pressure Control Range	300-3000 PSI, 20.7-210 BAR	Maximum Tank Pressure	5000 psi
Function	Pilot Operated	Adjustment Mechanism	Knob
Cavity Size	C16-3	Minimum Operating Temperature	-30 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	150 L/min	Maximum Operating Temperature	+121 °C
Maximum Inlet Pressure Rating	380 bar	Maximum Pressure Setting	3000 psi
Valve Material	All parts steel. All operating parts hardened steel.	Seal Material	Nitrile
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.9 kg	Maximum Operating Pressure	350 bar
Installation Torque	73 lb-ft	Standard Setting Pressure	103.5 bar
Maximum Drain Flow Rate	0.94 L/min	Operation Type	Automatic
Division	Hydraulic Systems Division	Pressure Control Range	20.7-210 bar
Mounting Type	Screw in cartridge valve	Pressure Control Sensitivity	60 per turn bar
Flow Rate	150 L/min	Actuation Type	Pressure Sensing
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to +121 °C
Configuration	Pressure Reducing
