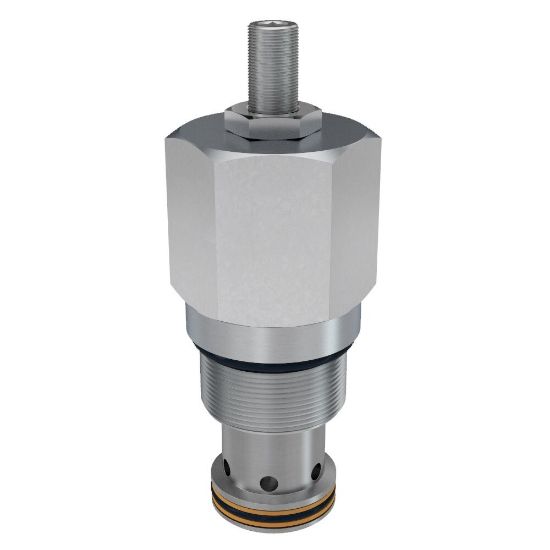

A06P2PZN - Pilot Operated Relief Valve with Free Reverse Check

REGIONAL - Parker’s pilot operated relief valves with reverse flow check are designed for continuous duty applications for working with pressures up to 420 bar (6000 psi) and flows up to 350 lpm (92 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A06P2PZN

$597.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Tamper Resistant
Flow Rate	106 GAL/MIN, 400 L/MIN	Seal Material	Screw
Valve Material	Steel (all parts)	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Operating Temperature	250 °F	Maximum Pressure Setting	420 bar
Maximum Flow Rate	106 Gal/min	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Division	Hydraulic Cartridge Systems Division	Function	Pilot Operated
Seal Material	Nitrile	Maximum Inlet Pressure Rating	6000 psi
Maximum Tank Pressure	420 bar	Division	Mobile Hydraulic Systems Division Europe
Body Material	n/a	Installation Torque	100 Nm
Weight	1.26 lb	Operation Type	Automatic
Standard Setting Pressure	2900 psi	Mounting Type	Screw-in Cartridge
Pressure Control Range	10 to 420 bar	Flow Rate	106 Gal/min
Pressure Control Sensitivity	53 bar Per Turn	Operating Temperature	-30 to 250 °F
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	420 bar	Configuration	Pressure Relief with Reverse Check
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Adjustment Mechanism	Screw
Cavity Size	C16-2	Minimum Operating Temperature	-30 °F
