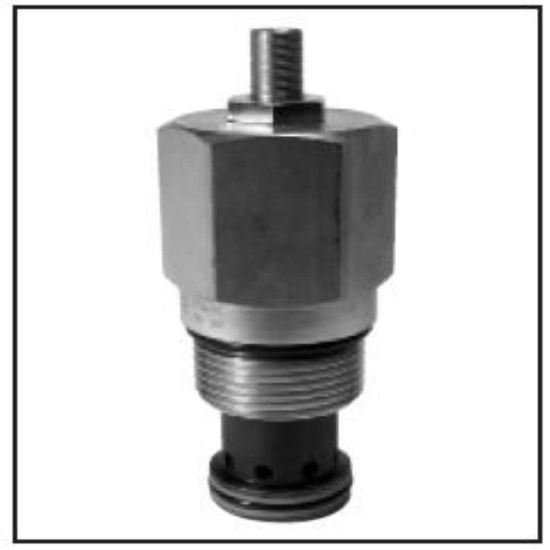

A06G2HZN - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A06G2HZN

$367.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Pressure Control Range	145-3000 PSI, 10-210 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	106 GAL/MIN, 400 L/MIN
Standard Setting Pressure	1450 psi	For Fluid Type	Synthetic Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	121 °C
Leak Rate	100 cm3/min @ 1450 Psi (100 bar)	Maximum Pressure Setting	210 bar
Seal Material	Nitrile	Maximum Flow Rate	400 L/min
Valve Material	Hardened Steel (all operating parts)	Actuation Type	Pressure Sensing
Filter Efficiency Rating	SAE Class 4	Weight	1.26 lb
Operating Temperature	-34 to 121 °C	Maximum Operating Pressure	420 bar
Configuration	Pressure Relief	Body Material	n/a
Operation Type	Automatic	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	74 lb-ft	Reseat Pressure	n/a
Adjustment Mechanism	Screw	Minimum Operating Temperature	-30 °F
Cavity Size	C16-2	Mounting Type	Screw-in Cartridge
Pressure Control Sensitivity	435 psi Per Turn	Flow Rate	106 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Range	145 to 3000 psi
Maximum Tank Pressure	420 bar	Maximum Inlet Pressure Rating	6000 psi
Function	Pilot Operated
