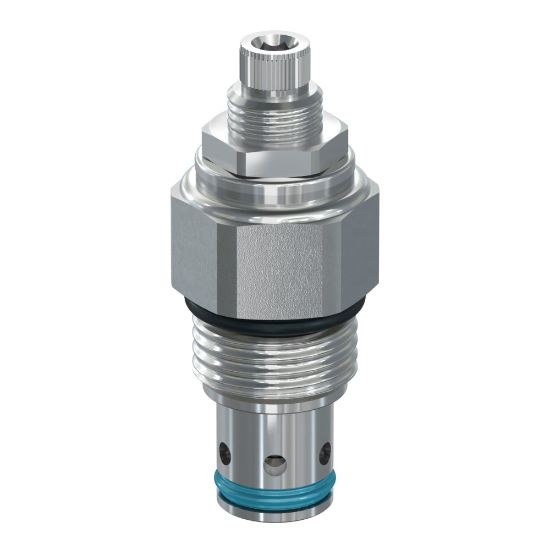

RAH101T10 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	2 Limited Stock

SKU RAH101T10

$89.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Flow Rate	30 GAL/MIN, 113 L/MIN	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Operating Temperature	-35 to +200 °F	Flow Rate	30 Gal/min
Actuation Type	Pressure Sensing	Maximum Flow Rate	113 L/min
Maximum Operating Pressure	350 bar	Maximum Operating Temperature	+200 °F
Minimum Operating Temperature	-35 °F	Body Material	N/A
Seal Material	D-Ring (Standard)	Weight	0.23 kg
Mounting Type	Screw in cartridge valve	Operation Type	Automatic
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Pressure Relief
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	Pilot Operated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min
Cavity Size	C10-2	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	69-75 Nm	Maximum Inlet Pressure Rating	5000 psi
Adjustment Mechanism	Tamper Resistant	Maximum Pressure Setting	1000 psi
Reseat Pressure	90% of pressure setting	Maximum Tank Pressure	350 bar
Pressure Control Range	100-1000 psi	Standard Setting Pressure	500 psi
Pressure Control Sensitivity	285 per turn psi
