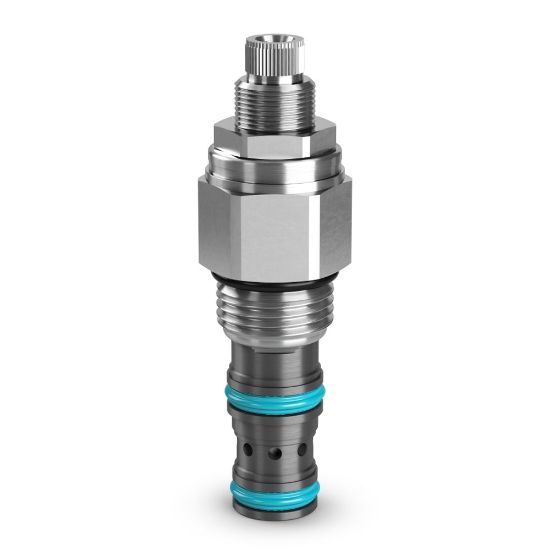

SVH081K10 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SVH081K10

$101.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Pilot Option	Internal	Drain Option	External
Adjustment Type	Knob	Rated Flow (gpm)	12
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	100-1000
Division	Hydraulic Systems Division	Body Material	N/A
Installation Torque	43-49 Nm	Reseat Pressure	90% of set pressure
Weight	0.25 lb	Pilot Location	Internal
Maximum Drain Flow Rate	0.56 L/min	Standard Setting Pressure	500 psi
Maximum Flow Rate	45 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+93 °C	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	D-Ring (Standard)	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Division	Hydraulic Cartridge Systems Division	Maximum Pressure Setting	69 bar
Function	Pilot Operated Sequence	Maximum Inlet Pressure Rating	380 bar
Maximum Tank Pressure	5000 psi	Cracking Pressure	N/A psi
Port Size	N/A	Adjustment Mechanism	Knob
Cavity Size	C08-3	Minimum Operating Temperature	-37 °C
Pressure Control Range	100-1000 psi	Mounting Type	Threaded Cartridge Valve
Flow Rate	12 Gal/min	Pressure Control Sensitivity	19.6 per turn bar
Operating Temperature	-37 to +93 °C	Maximum Operating Pressure	5500 psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Drain Option	External
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
