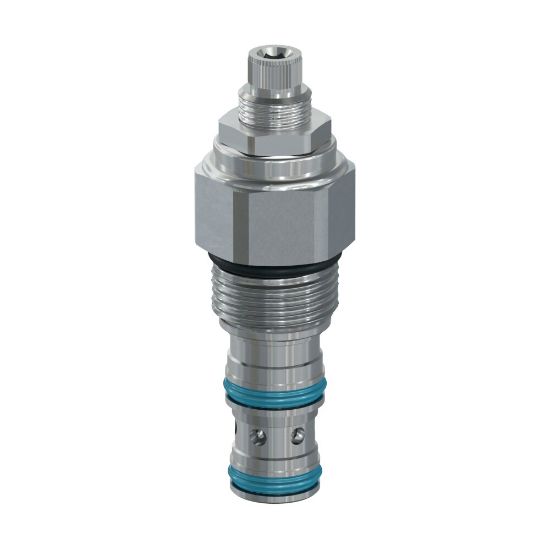

SVH101K30V - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU SVH101K30V

$102.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Pilot Option	Internal	Drain Option	External
Adjustment Type	Knob	Rated Flow (gpm)	15
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	200-3000
Adjustment Mechanism	Knob	Minimum Operating Temperature	-15 °F
Cavity Size	C10-3	Flow Rate	56.3 L/min
Pressure Control Range	200-3000 psi	Mounting Type	Threaded Cartridge Valve
Actuation Type	Pressure Sensing	Drain Option	External
Pressure Control Sensitivity	59 per turn bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-15 to +400 °F
Pilot Location	Internal	Body Material	N/A
Weight	1 lb	Maximum Operating Pressure	380 bar
Installation Torque	51-55 lb-ft	Standard Setting Pressure	1500 psi
Maximum Drain Flow Rate	0.25 L/min	Division	Hydraulic Systems Division
Reseat Pressure	90% of set pressure	Maximum Operating Temperature	+204 °C
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	15 Gal/min	Division	Hydraulic Cartridge Systems Division
Maximum Tank Pressure	350 bar	Maximum Pressure Setting	210 bar
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	5500 psi
Seal Material	Fluorocarbon	Port Size	N/A
Function	Pilot Operated Sequence	Cracking Pressure	N/A bar
