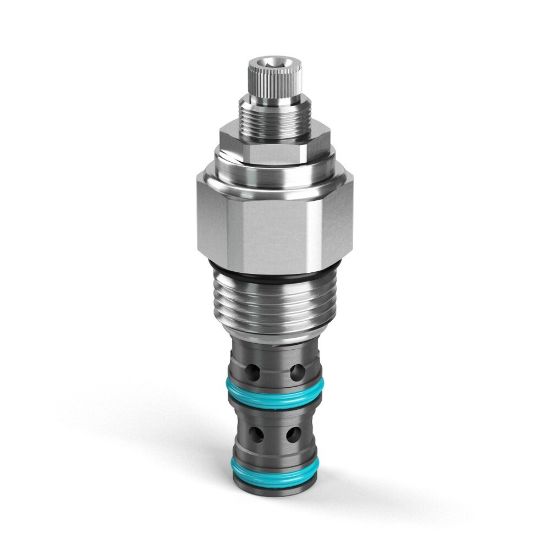

SVH102K30 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SVH102K30

$91.13/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Adjustment Type	Knob	Rated Flow (gpm)	15
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	200-3000
Drain Option	Internal	Pilot Option	External
Pilot Location	External	Body Material	N/A
Weight	1 lb	Maximum Operating Pressure	5500 psi
Installation Torque	51-55 lb-ft	Standard Setting Pressure	103.5 bar
Division	Hydraulic Systems Division	Reseat Pressure	90% of set pressure
Maximum Drain Flow Rate	1.53 Gal/min	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Maximum Operating Temperature	+93 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	56.3 L/min
Maximum Tank Pressure	5000 psi	Maximum Pressure Setting	3000 psi
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	5500 psi
Seal Material	D-Ring (Standard)	Port Size	N/A
Function	Pilot Operated Sequence	Cracking Pressure	N/A bar
Adjustment Mechanism	Knob	Cavity Size	C10-3
Minimum Operating Temperature	-37 °C	Mounting Type	Threaded Cartridge Valve
Flow Rate	56.3 L/min	Pressure Control Range	13.8-210 bar
Drain Option	Internal	Pressure Control Sensitivity	59 per turn bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Operating Temperature	-37 to +93 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
