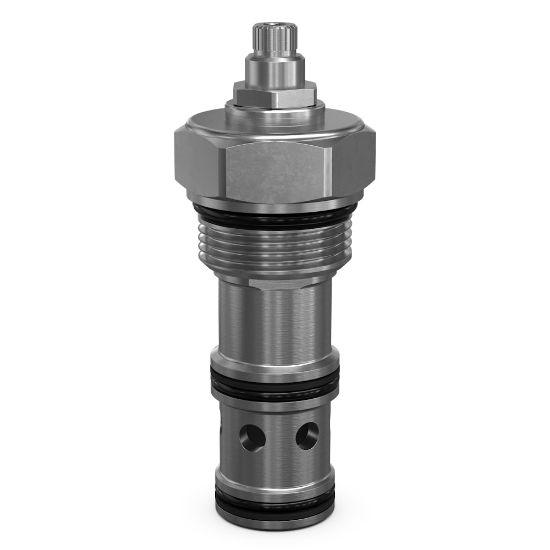

SVH161K50 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SVH161K50

$185.09/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Pilot Option	Internal	Drain Option	External
Adjustment Type	Knob	Cracking Pressure (psi)	N/A
Rated Flow (gpm)	40	Pressure Range Adjustment (psi)	500-5000
Cracking Pressure	N/A psi	Port Size	N/A
Adjustment Mechanism	Knob	Minimum Operating Temperature	-34 °C
Cavity Size	6-3	Pressure Control Range	500-5000 psi
Mounting Type	Threaded Cartridge Valve	Pressure Control Sensitivity	118 per turn bar
Flow Rate	40 Gal/min	Operating Temperature	-34 to +121 °C
Maximum Operating Pressure	5500 psi	Actuation Type	Pressure Sensing
Drain Option	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	1 lb
Reseat Pressure	80% of set pressure	Installation Torque	73 lb-ft
Pilot Location	Internal	Division	Hydraulic Systems Division
Body Material	N/A	Maximum Drain Flow Rate	0.5 L/min
Standard Setting Pressure	2500 psi	Maximum Flow Rate	40 Gal/min
Valve Material	All parts steel. All operating parts hardened steel	Division	Hydraulic Cartridge Systems Division
Maximum Operating Temperature	+121 °C	Leak Rate	5 per 100 PSI (6.8 BAR) setting cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Pressure Setting	5000 psi
Function	Pilot Operated Sequence	Maximum Inlet Pressure Rating	5500 psi
Seal Material	Nitrile	Maximum Tank Pressure	5000 psi
