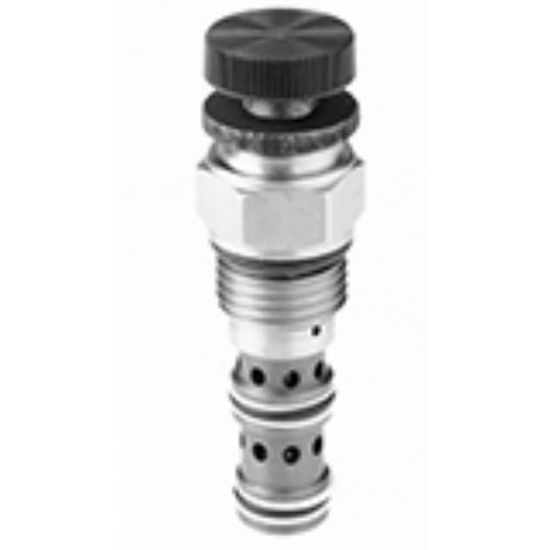

SVH162K30 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SVH162K30

$229.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Type	Knob	Cracking Pressure (psi)	N/A
Drain Option	Internal	Pilot Option	External
Rated Flow (gpm)	40	Pressure Range Adjustment (psi)	300-3000
Standard Setting Pressure	103.5 bar	Division	Hydraulic Cartridge Systems Division
Maximum Drain Flow Rate	3.1 Gal/min	Maximum Operating Temperature	+121 °C
Leak Rate	5 per 100 PSI (6.8 BAR) setting cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Pressure Setting	210 bar	Maximum Flow Rate	151.6 L/min
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Maximum Tank Pressure	5000 psi	Function	Pilot Operated Sequence
Maximum Inlet Pressure Rating	380 bar	Port Size	N/A
Cracking Pressure	N/A bar	Mounting Type	Threaded Cartridge Valve
Adjustment Mechanism	Knob	Minimum Operating Temperature	-34 °C
Cavity Size	6-3	Pressure Control Sensitivity	59.7 per turn bar
Flow Rate	151.6 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Pressure Control Range	20.7-210 bar	Actuation Type	Pressure Sensing
Drain Option	Internal	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	5500 psi
Pilot Location	External	Division	Hydraulic Systems Division
Body Material	N/A	Weight	0.45 kg
Reseat Pressure	80% of set pressure	Installation Torque	99 Nm
