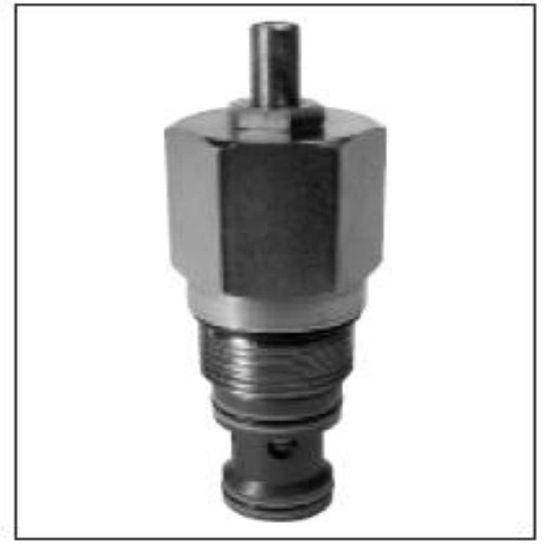

A06H3HZN - Pilot Operated Ventable Relief Valves

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A06H3HZN

$389.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Pressure Control Range	145-3000 PSI, 10-210 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	106 GAL/MIN, 400 L/MIN
For Fluid Type	Synthetic Hydraulic Fluids	Leak Rate	100 cm3/min @ 1450 Psi (100 bar)
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	400 L/min
Maximum Inlet Pressure Rating	420 bar	Maximum Operating Temperature	121 °C
Seal Material	Nitrile	Valve Material	Hardened Steel (all operating parts)
Maximum Pressure Setting	3000 psi	Body Material	n/a
Installation Torque	74 lb-ft	Weight	1.28 lb
Maximum Operating Pressure	6000 psi	Standard Setting Pressure	1450 psi
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Reseat Pressure	n/a	Mounting Type	Screw-in Cartridge
Pressure Control Range	145 to 3000 psi	Pressure Control Sensitivity	435 psi Per Turn
Flow Rate	106 Gal/min	Actuation Type	Pressure Sensing
Filter Efficiency Rating	ISO 4406 18/16/13	Operating Temperature	-34 to 121 °C
Configuration	Ventable Pressure Relief	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Tank Pressure	420 bar	Function	Pilot Operated
Adjustment Mechanism	Screw	Cavity Size	C16-3S
Minimum Operating Temperature	-30 °F
