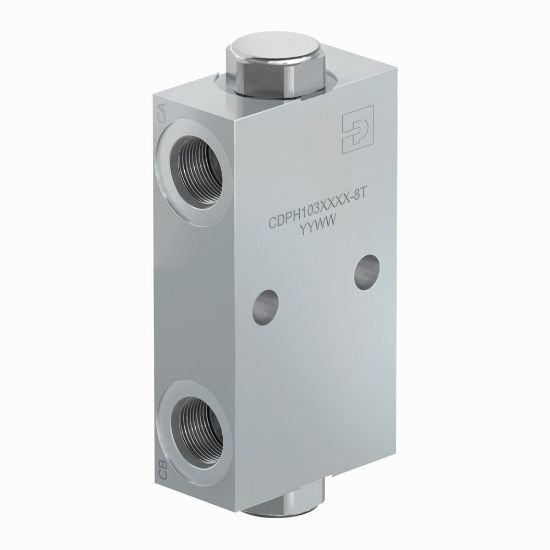

CDPH103P50-8T - Pilot Piston Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow from 38 lpm (10 gpm) to 226 lpm (60 gpm) and pressures up to 350 bar (5,000 psi) after pilot pressure is supplied.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CDPH103P50-8T

$192.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Sealed Pilot Included	No
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	50 PSI, 3.5 BAR
Operation Type	Automatic	Division	Hydraulic Systems Division
Pilot Pressure Ratio	4:1	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Sealed Pilot Included	No
Connection Type	SAE	Leak Rate	312 Cc/min across Pilot Piston (no seals)
Maximum Operating Temperature	93 °C	Seal Material	D-Ring (Standard)
Valve Material	Steel	Maximum Flow Rate	16 Gal/min
Connection Size	-8	Maximum Inlet Pressure Rating	5000 psi
Flow Direction	Free Flow Valve to Cylinder	Function	Dual Pilot Operated
Cracking Pressure	50 psi	Cavity Size	C10
Minimum Operating Temperature	-35 °F	Mounting Type	Line Mounted
Flow Rate	60 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-37 to 93 °C	Body Material	Steel
Actuation Type	Pressure Sensing	Filter Efficiency Rating	SAE Class 4
Weight	1.5 kg	Configuration	Pilot Piston Style
Maximum Operating Pressure	350 bar
