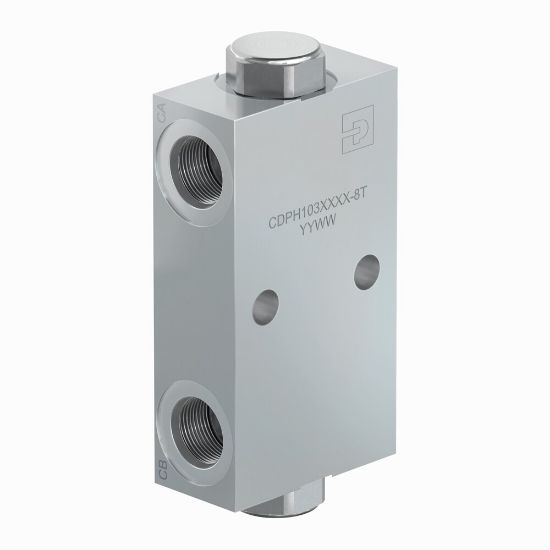

CDPH103P65V-8T - Pilot Piston Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow from 38 lpm (10 gpm) to 226 lpm (60 gpm) and pressures up to 350 bar (5,000 psi) after pilot pressure is supplied.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CDPH103P65V-8T

$202.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Sealed Pilot Included	No
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	65 PSI, 4.5 BAR
Connection Type	SAE	Pilot Pressure Ratio	4:1
Division	Hydraulic Cartridge Systems Division	Sealed Pilot Included	No
Leak Rate	312 Cc/min across Pilot Piston (no seals)	Seal Material	Fluorocarbon
Maximum Flow Rate	60 L/min	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Operating Temperature	400 °F	Valve Material	Steel
Maximum Inlet Pressure Rating	5000 psi	Function	Dual Pilot Operated
Connection Size	-8	Cracking Pressure	65 psi
Flow Direction	Free Flow Valve to Cylinder	Minimum Operating Temperature	-15 °F
Cavity Size	C10	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Mounting Type	Line Mounted	Flow Rate	60 L/min
Filter Efficiency Rating	SAE Class 4	Configuration	Pilot Piston Style
Maximum Operating Pressure	350 bar	Operating Temperature	-26 to 204 °C
Actuation Type	Pressure Sensing	Operation Type	Automatic
Weight	3.39 lb	Body Material	Steel
Division	Hydraulic Systems Division
