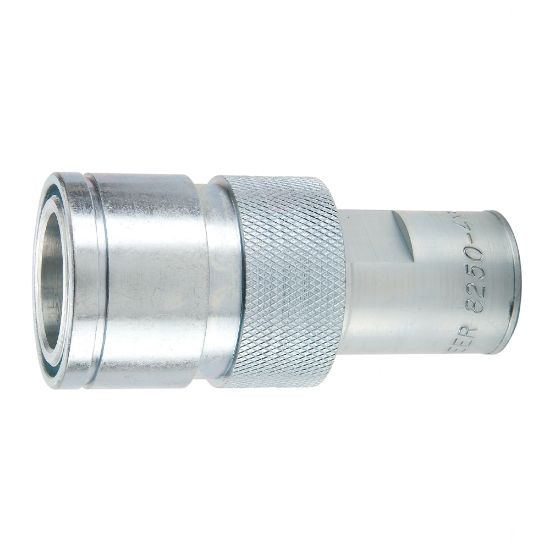

8250-4 - Pioneer Agricultural, Connect Under Pressure Quick Couplers, Breakaway Sleeve (ISO 5675) - 8200 Series

Name: 8250-4 - Pioneer Agricultural, Connect Under Pressure Quick Couplers, Breakaway Sleeve (ISO 5675) - 8200 Series
SKU: 8250-4
Price: 65.40 USD
Availability: LimitedAvailability

Parker's connect under pressure, agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection, featuring a sleeve designed to accomodate bracket/bulkhead mounting.

Manufacturer: Parker

Availability:

6 in stock

COLUMBIA, MO	2
Kansas City, KS	2
Springfield, MO	1
Peoria, IL	1

Partner Available:

37 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8250-4

$65.40/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/2 - 14
Maximum Operating Pressure	3000 psi	Sleeve Type	Push-pull Breakaway
Flow Rate	12 Gal/min	Application	Connect Under Pressure
Valve Type	Connect Under Pressure	Division	Quick Coupling Division
Connection Type	NPSF	Thread Size	Female
Body Material	Steel	Lock Type	Locking Balls
Media	Hydraulic	Body Size	1/2 inch
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 5675
Coupling Half	Coupler	Plating Type	Zinc with Clear Trivalent Chromate

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
