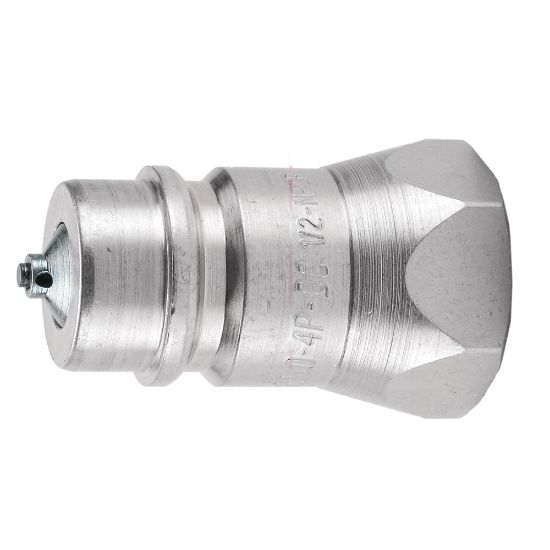

8010-15P-DC - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Name: 8010-15P-DC - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series
SKU: 8010-15P-DC
Price: 44.85 USD
Availability: InStock

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

Manufacturer: Parker

Availability:

18 in stock

Olivette, MO

Partner Available:

13 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8010-15P-DC

$44.85/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port Connection (inch)	3/4 - 16
Connection Type	ORB	Valve Style	Connect under pressure poppet
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with Clear Trivalent Chromate
Coupling Half	Nipple	Dimensional Weight	0.03998800959232614 lb
Maximum Operating Pressure	3000 psi	Application	Connect Under Pressure
Flow Rate	12 Gal/min	Specifications Met	ISO 5675
Thread Size	Female	Body Material	Steel
Media	Hydraulic	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Size	1/2 inch
Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
