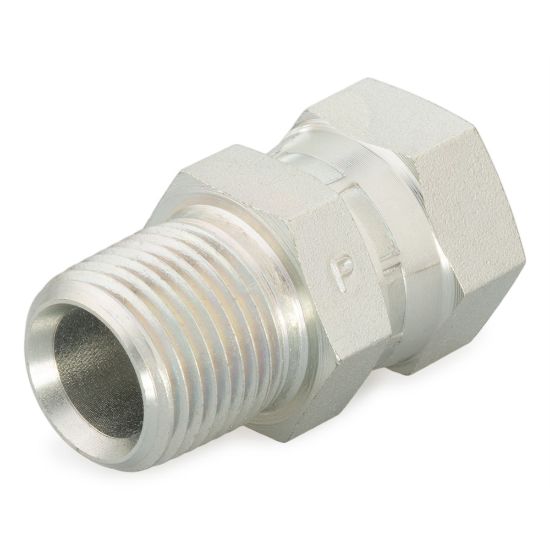

0107-20-20-SS - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 0107-20-20-SS

$180.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel
Length (inch)	na	Connection Style	NPT/NPTF to NPSM Swivel
Connection 3 Thread Size (inch)	na	Connection 3 Style	na
Connection 2 Thread Size (mm)	na	Connection 1 Style	Male NPT/NPTF
Connection 2 Thread Size (inch)	1 1/4-11 1/2	Connection 1 Thread Size (inch)	1 1/4-11 1/2
Shape	Straight	O-Ring Material	na
Connection 1 Thread Size (mm)	na	Connection 2 Style	Female NPSM Swivel
Body Material	Stainless Steel	Fitting Type	Pipe Swivel
Connection 4 Thread Size	na	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	2500 psi

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
