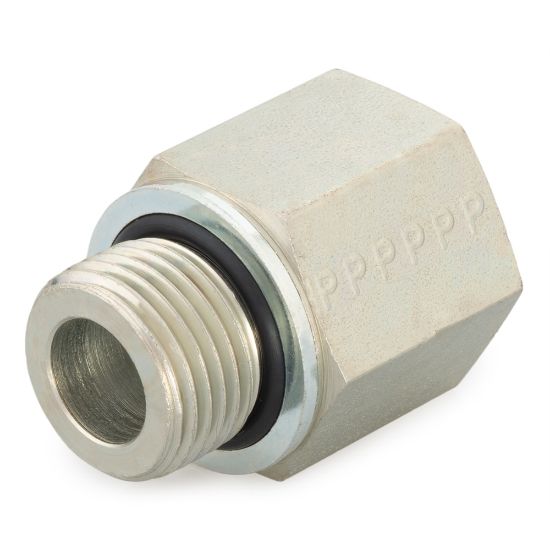

1/2-10F4OHG5S - Pipe Fittings and Port Adapters

Name: 1/2-10F4OHG5S - Pipe Fittings and Port Adapters
SKU: 1/2-10F4OHG5S
Price: 27.77 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Manufacturer: Parker

Availability:

7 in stock

Wichita, KS

Partner Available:

39 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1/2-10F4OHG5S

$27.77/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	na	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Connection Style	BSPP-ORR to SAE-ORB
Connection 1 Style	Male BSPP-ORR	Connection 2 Style	Female SAE-ORB
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (inch)	1/2-14
Connection 2 Thread Size (inch)	7/8-14	Connection 3 Thread Size (inch)	na
Connection 4 Size	na	Maximum Dynamic Pressure	3500 psi
Dimensional Weight	0.07913669064748201 lb	Body Material	Steel
Fitting Type	Pipe Adapter	Connection 4 Thread Size	na
Division	Tube Fittings Division

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)
