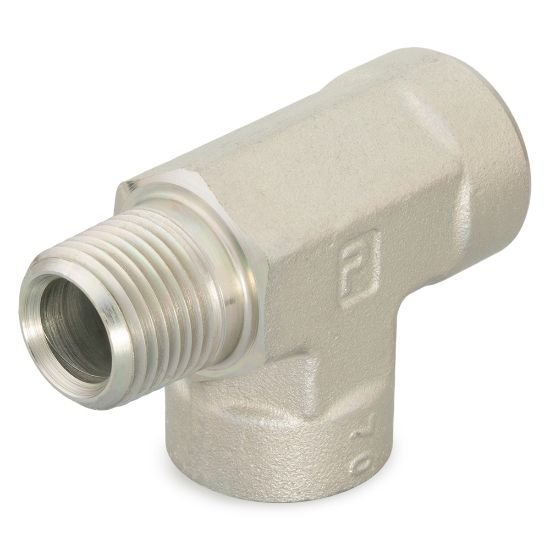

3/8 MRO-B - Pipe Fittings and Port Adapters

Name: 3/8 MRO-B - Pipe Fittings and Port Adapters
SKU: 3/8 MRO-B
Price: 53.83 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Manufacturer: Parker

Availability:

18 in stock

Kansas City, KS

Partner Available:

14 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 3/8 MRO-B

$53.83/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Shape	Tee	Length (inch)	na
O-Ring Material	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 2 Thread Size (inch)	3/8-18
Connection 1 Thread Size (inch)	3/8-18	Connection 1 Style	Female NPT/NPTF
Connection 3 Thread Size (inch)	3/8-18	Connection Style	Male Run Tee
Connection 2 Style	Male NPT/NPTF	Connection 3 Style	Female NPT/NPTF
Fitting Type	Pipe Fitting	Division	Tube Fittings Division
Connection 4 Thread Size	na	Dimensional Weight	0.07913669064748201 lb
Body Material	Brass	Maximum Dynamic Pressure	3000 psi
Connection 4 Size	na

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
