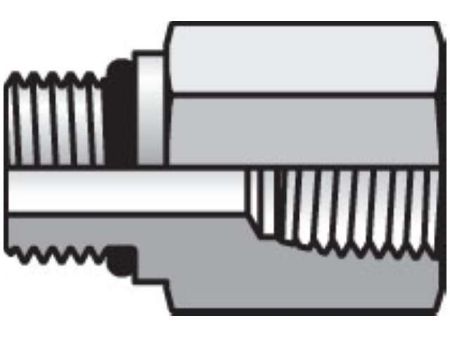

Pipe & Port Reducer, Expander, Conversion F5OG
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Pipe Fittings and Port Adapters utilize many different thread types including: NPT, NPTF, BSPT, BSPP, SAE UN/UNF, and Metric.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | End 2 | O-Ring/Seal Material | Pkg Qty | Pkg Qty/UOM | End 1 | Material | Parker Group | Parker Division | Material | Inch/Metric | Configuration Type | Series | Tube Fitting/Adapter Type | End 2 Type | End 2 | O-Ring/Seal Material | End 1 | End 1 Type | Configuration Sub-Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-3/8 F5OG-S FKM | Backordered | Backordered | $6.57/each | EA | EA | 3/8-18 NPTF | Fluorocarbon | 25 | 25 EA | 7/8-14 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 3/8-18 NPTF | Fluorocarbon | 7/8-14 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |
| 12-1/2 F5G-S | Backordered | 29 in stock | $11.42/each | EA | EA | 1/2-14 NPTF | 10 | 10 EA | 1 1/16-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1/2-14 NPTF | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |||
| 12-1/4 F5OG-SS FKM | Backordered | Backordered | $146.22/each | EA | EA | 1/4-18 NPTF | Fluorocarbon | 5 | 5 EA | 1 1/16-12 UN/UNF-2A | Stainless Steel | Fluid Connector | Tube Fitting | Stainless Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1/4-18 NPTF | Fluorocarbon | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |
| 12-3/4 F5G-S | Backordered | 11 in stock | $13.62/each | EA | EA | 3/4-14 NPTF | 5 | 5 EA | 1 1/16-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 3/4-14 NPTF | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |||
| 16-1 F5G-S | Backordered | 13 in stock | $22.23/each | EA | EA | 1-11 1/2 NPTF | 5 | 5 EA | 1 5/16-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1-11 1/2 NPTF | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |||
| 16-1/2 F5G-S | Backordered | Backordered | $14.80/each | EA | EA | 1/2-14 NPTF | 10 | 10 EA | 1 5/16-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1/2-14 NPTF | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |||
| 24-1 1/2 F5G-S | Backordered | 2 Limited Stock | $23.43/each | EA | EA | 1 1/2-11 1/2 NPTF | 2 | 2 EA | 1 7/8-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1 1/2-11 1/2 NPTF | 1 7/8-12 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |||
| 6-1/4 F5G-S | Backordered | 138 in stock | $5.53/each | EA | EA | 1/4-18 NPTF | 25 | 25 EA | 9/16-18 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1/4-18 NPTF | 9/16-18 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF | |||
| 8-1/4 F5G-S | Backordered | Backordered | $6.87/each | EA | EA | 1/4-18 NPTF | 25 | 25 EA | 3/4-16 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Steel | Inch | Reducer, Expander, Conversion | Pipe & Port | Pipe & Port | NPTF | 1/4-18 NPTF | 3/4-16 UN/UNF-2A | UN/UNF-2A | Female Pipe Adapter SAE-ORB / NPTF |
