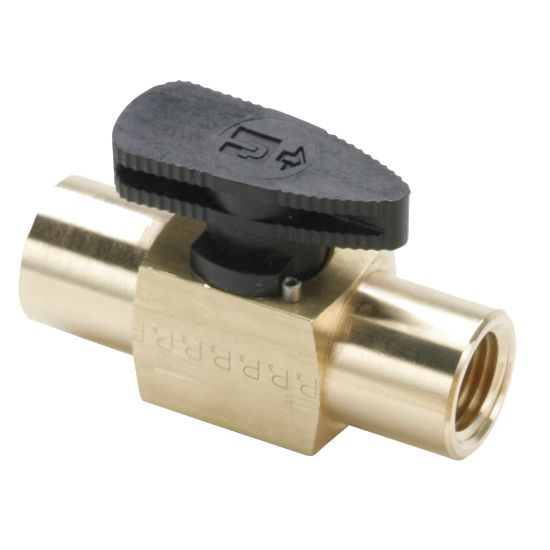

PV609-2 - Plug Valves

Name: PV609-2 - Plug Valves
SKU: PV609-2
Price: 40.10 USD
Availability: InStock

Parker's plug valve compact design has internal nitrile seats and a one-piece extruded brass body.

Manufacturer: Parker

Availability:

6 in stock

Springfield, MO	4
Olivette, MO	2

Partner Available:

31 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PV609-2

$40.10/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Style	Female Pipe to Female Pipe	Connection 1 Style	Female Pipe
Connection 1 Thread Size (inch)	1/8	Connection 2 Style	Female Pipe
Shape	In Line	Seal Material	Nitrile
Stem Material	Acetal	Division	Fluid System Connectors Division
Maximum Operating Temperature	79 °C	Dimensional Weight	0.27594424460431655 lb
Maximum Operating Pressure	17 bar	O-Ring Material	Nitrile
Body Material	Brass	Minimum Operating Temperature	-40 °C
