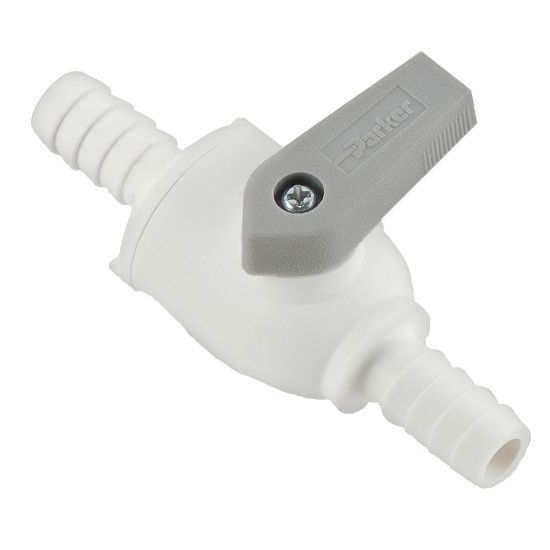

PBPP4VUC4 - Polypropylene Ball Valves

Parker's polypropylene ball valves corrosion resistant design make them ideal for water filtration units, coffee and beverage machines and various other fluid applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU PBPP4VUC4

$8.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Shape	Union	Connection 2 Type	Barb
Connection 1 Size	1/4 inch	Connection 1 Type	Barb
Connection 3 Type	N/A	Product Style	Barb to Barb
Connection 3 Size	N/A	Connection 2 Size	1/4 inch
Maximum Operating Pressure	150 psi	Body Material	Polypropylene
Specifications Met	FDA, NSF-51	Ball Material	Polysulfone
Orifice Size	.15 inch	Minimum Operating Temperature	-18 °C
Connection Type	NPTF	Division	Fluid System Connectors Division
Seat Material	EPDM	Seal Material	EPDM
Maximum Operating Temperature	107 °C
