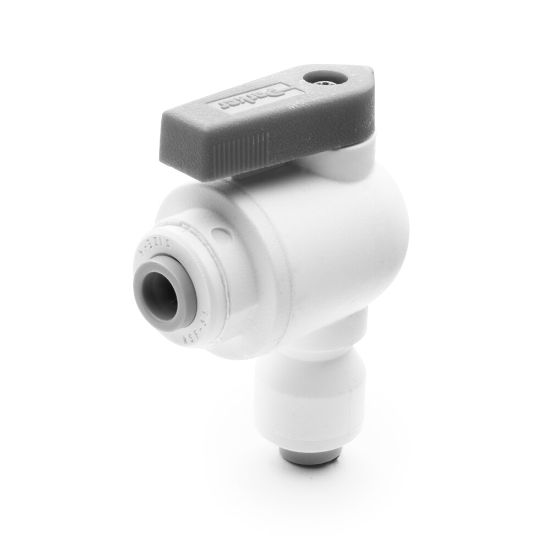

PP4VEU6-MG - Polypropylene Ball Valves

Parker's polypropylene ball valves corrosion resistant design make them ideal for water filtration units, coffee and beverage machines and various other fluid applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 78 days
Partner Available:	Backordered

SKU PP4VEU6-MG

$11.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Type	N/A
Shape	90° Elbow	Connection 1 Size	1/4 inch
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Connection 2 Size	3/8 inch	Color	White
Product Style	Tube to Tube	Connection 3 Size	N/A
Minimum Operating Temperature	-18 °C	Ball Material	Polysulfone
Seal Material	EPDM	Maximum Operating Temperature	225 °F
Body Material	Polypropylene	Connection Type	NPTF
Division	Fluid System Connectors Division	Seat Material	EPDM
Orifice Size	.19 inch	Specifications Met	FDA, NSF-51
Maximum Operating Pressure	10 bar
