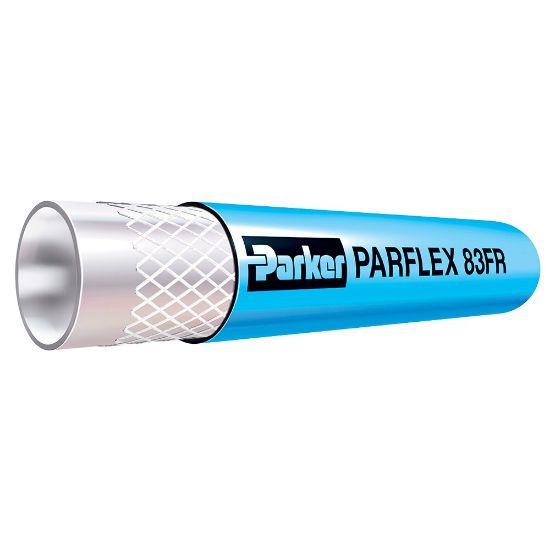

83FR-4-GRA-RL - Polyurethane Hose - 83FR

Flame Resistant 83FR Polyurethane Hose is Parker’s most durable, multipurpose flame retardant hose for air and water. It is MSHA accepted and often used in robotic welding applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 83FR-4-GRA-RL

$2.89/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Gray
Hose I.D. (inch)	1/4	Media	Water
Hose Inner Tube Material	Specially Formulated Polyurethane	Compatible Fitting	82 Series (temperature range reduced to 145°F/63°C with 82 Series)
Design Factor	4:1	Maximum Operating Temperature	200 °F
Specifications Met	UL 94 (HB)	Application	Robotics
Hose Reinforcement Material	Fiber	Minimum Operating Temperature	-29 °C
Cover Material	Polyurethane	Minimum Bend Radius	25 mm
Weight	0.05 lb/ft	Maximum Operating Pressure	300 psi
Vacuum Pressure Rating	n/a	Inside Diameter	6 mm
Outside Diameter	12.2 mm	Division	Parflex Division
