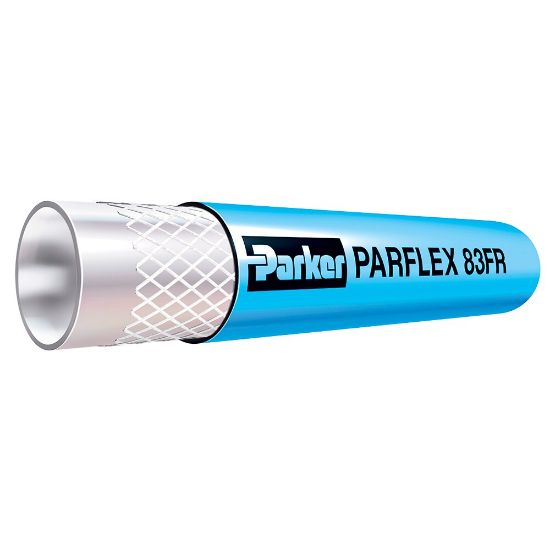

83FR-8-GRA-RL - Polyurethane Hose - 83FR

Flame Resistant 83FR Polyurethane Hose is Parker’s most durable, multipurpose flame retardant hose for air and water. It is MSHA accepted and often used in robotic welding applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	135 in stock

SKU 83FR-8-GRA-RL

$5.32/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Color	Gray	Vacuum Pressure Rating	n/a
Outside Diameter	19.3 mm	Weight	0.12 lb/ft
Inside Diameter	1/2 inch	Maximum Operating Pressure	300 psi
Compatible Fitting	56 Series (temperature range reduced to 145°F/63°C with 82 Series)	Maximum Operating Temperature	93 °C
Hose Inner Tube Material	Specially Formulated Polyurethane	Division	Parflex Division
Cover Material	Polyurethane	Media	Water
Design Factor	4:1	Application	Robotics
Specifications Met	SAE J517 (non-conductivity)	Minimum Operating Temperature	-20 °F
Minimum Bend Radius	64 mm	Hose Reinforcement Material	Fiber
