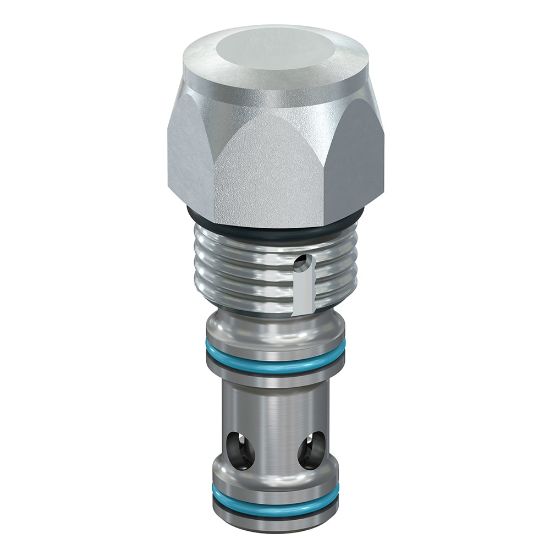

10SLC1-A-50 - Poppet Type Logic Element

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 10SLC1-A-50

$117.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Flow Rate	15 GAL/MIN, 57 L/MIN	Configuration	Pilot to Close
Switching Pressure	50 PSI, 3.5 BAR	Division	Hydraulic Systems Division
Operation Type	Pilot Operated	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Operating Temperature	225 °F	Leak Rate	5
Maximum Flow Rate	57 L/min	Division	Hydraulic Cartridge Systems Division
Maximum Inlet Pressure Rating	240 bar	Seal Material	Polyurethane EPS
Valve Material	Steel	Flow Direction	Bi-directional
Function	Logic Valve	Switching Pressure	3.5 bar
Minimum Operating Temperature	-37 °C	Cavity Size	C10-3S
Flow Rate	15 Gal/min	Actuation Type	Pilot to Close
Operating Temperature	-35 to 225 °F	Filter Efficiency Rating	ISO 4406 18/16/13
Configuration	Normally Closed (NC)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	n/a	Body Material	n/a
Pilot Location	External	Installation Torque	22 Nm
Weight	0.14 kg	Maximum Operating Pressure	240 bar
