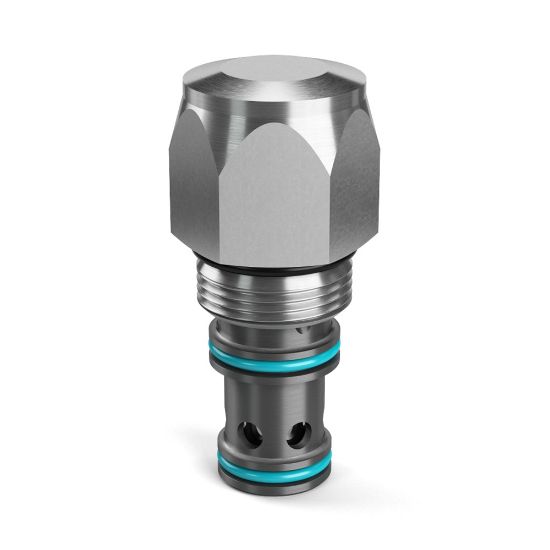

16SLC1-A-100 - Poppet Type Logic Element

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 16SLC1-A-100

$117.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Pilot to Close	Switching Pressure	100 PSI, 6.9 BAR
Flow Rate	50 GAL/MIN, 189 L/MIN	Flow Direction	Side to Nose (2-1)
Function	Logic Valve	Valve Material	Steel
Leak Rate	5	Seal Material	Polyurethane EPS
Maximum Inlet Pressure Rating	3500 psi	Maximum Operating Temperature	107 °C
Switching Pressure	6.9 bar	Minimum Operating Temperature	-37 °C
Cavity Size	C16-3S	Filter Efficiency Rating	ISO 4406 18/16/13
Weight	0.33 kg	Pilot Location	External
Maximum Operating Pressure	3500 psi	Vented	n/a
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Closed (NC)	Actuation Type	Pilot to Close
Flow Rate	189 L/min	Operating Temperature	-37 to 107 °C
Maximum Flow Rate	189 L/min	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Installation Torque	40 lb-ft
Operation Type	Pilot Operated	Division	Hydraulic Systems Division
