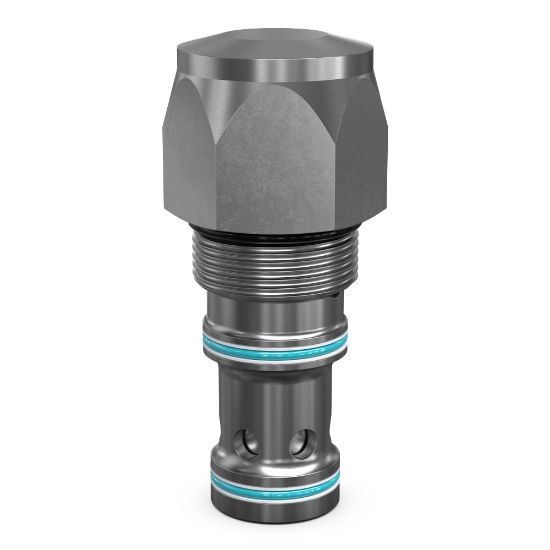

20SLC1-A-50 - Poppet Type Logic Element

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 20SLC1-A-50

$197.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Pilot to Close	Switching Pressure	50 PSI, 3.5 BAR
Flow Rate	80 GAL/MIN, 303 L/MIN	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Operating Temperature	-37 to 107 °C
Flow Rate	303 L/min	Actuation Type	Pilot to Close
Maximum Flow Rate	303 L/min	Maximum Operating Pressure	3500 psi
Maximum Operating Temperature	107 °C	Minimum Operating Temperature	-37 °C
Body Material	n/a	Seal Material	Polyurethane EPS
Flow Direction	Bi-directional	Weight	1.78 lb
Operation Type	Pilot Operated	Filter Efficiency Rating	SAE Class 4
Configuration	Normally Closed (NC)	For Fluid Type	Synthetic Hydraulic Fluids
Function	Logic Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	n/a	Leak Rate	5
Cavity Size	C20-3S	Pilot Location	External
Valve Material	Hardened Steel	Switching Pressure	50 psi
Installation Torque	83 lb-ft	Maximum Inlet Pressure Rating	3500 psi
