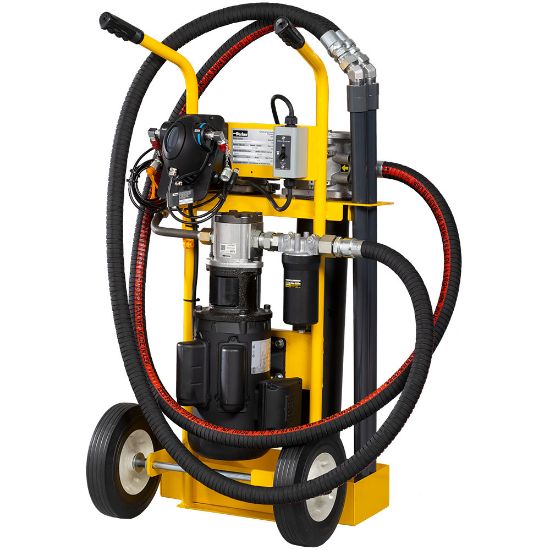

10PFCC220Q10QBVPIPDL - Portable Fluid Conditioning Cart

Parker Portable Fluid Conditioning Carts are the most economical way to protect your system from contamination. The Intelli-Cart™ includes the icountPD which provides an excellent method for trending contamination levels and filtering.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 10PFCC220Q10QBVPIPDL

$9,809.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Filter Element	20Q Microglass
Outlet Filter Element	10Q Microglass	Interface Option	Particle Detector
Maximum Flow Rate	10 gpm (38 lpm)	Electrical Requirements	110/220 volts, 60 Hz Single phase, 10/5.5 amps
Maximum Pressure Rating	10.3 bar	Maximum Kinematic Viscosity	215.0 cSt
Weight	145 lbs (65.8 kg)	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	150.0 °F	Seal Material	Nitrile
Bypass Option Included	35 PSID (2.4 bar)<br/>(on both elements)	Compatible Element	Stage 1 - 937400Q; Stage 2 - 937399Q
Indicator Type	Visual indicator, 3-band (mounted on both stages)
