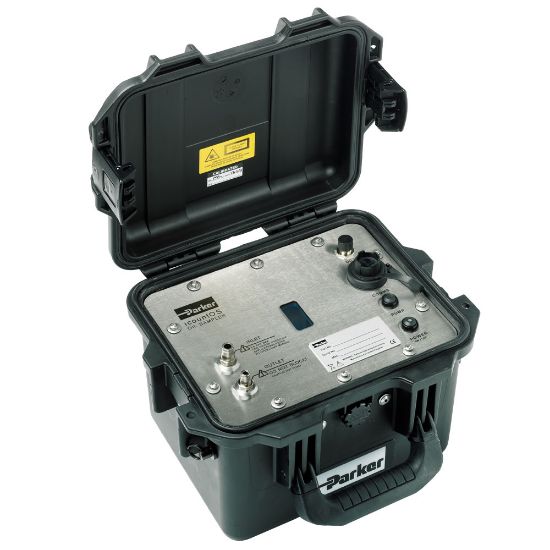

IOS1220US - Portable Particle Monitor – iCountOS

The iCountOS is a highly rugged portable particle size monitor that can be used for measuring contamination levels in fuels and/or hydraulic fluids. Capable of operation online (direct connection to system) or offline (sampling from tank or reservoir).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU IOS1220US

$11,904.19/each

Products specifications

Attribute name	Attribute value
UOM	EA	Electrical Connection	US
Fluid Type	Mineral-based Oils, Petroleum-based Fuel	Connection Style	Online
Communication Interface	RJ45 LAN Cable	Minimum Ambient Temperature	-40 °C
Maximum Fluid Temperature	80 °C	Product Style	Particle Detector/Counter
Signal Output	RS232	Calibration Type	MTD
Port Size	M16	Operating Pressure	35 to 5000 psi
Product Type	Condition Monitor	Length	248 mm
Outlet Connection Size	4 mm	Materials of Construction	Storm Case
Maximum Kinematic Viscosity	300 cSt	Operating Temperature	-30 to 80 °C
Port Type	Metric	Flow Rate	60 ml/min
Inlet Connection Size	6 mm	Cycle Time	30 second
Brand	Parker	Specifications Met	IP68
Electrical Requirements	12V Rechargeable Battery	Ingress Protection Rating	IP54
Division	Hydraulic & Industrial Process Filtration Division EMEA	Communication Interface	RJ45 LAN Cable
Sensing Method	Laser	Industry	Off-Road Machinery
Body Material	Brass	Weight	5.5 kg
Minimum Fluid Temperature	41 °F	Accuracy	+/- 1 ISO code
Technology	Filtration	Seal Material	Fluorocarbon
Height	195 mm	For Fluid Type	Mineral-based Oils
Division	Hydraulic & Industrial Process Filtration Division EMEA	Operating Humidity	5 to 100% (RH)
Width	299 mm	Maximum Ambient Temperature	80 °C
