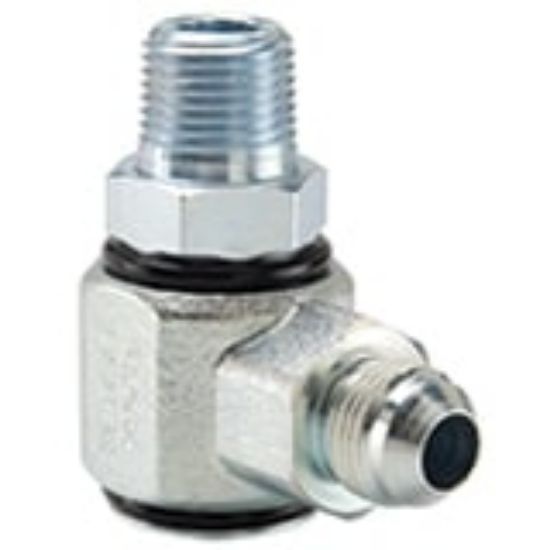

S2103-6-6 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	12 in stock

SKU S2103-6-6

$134.22/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Plating	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	3/8 - 18 NPTF	Shaft Connection Style	Male NPTF
Housing Connection Style	Male JIC 37 degree	Seal Material	Nitrile
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Maximum Operating Speed	10 RPM
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.12464028776978417 lb
Configuration	90 degree	Body Material	Steel
Maximum Operating Pressure	3000 psi
