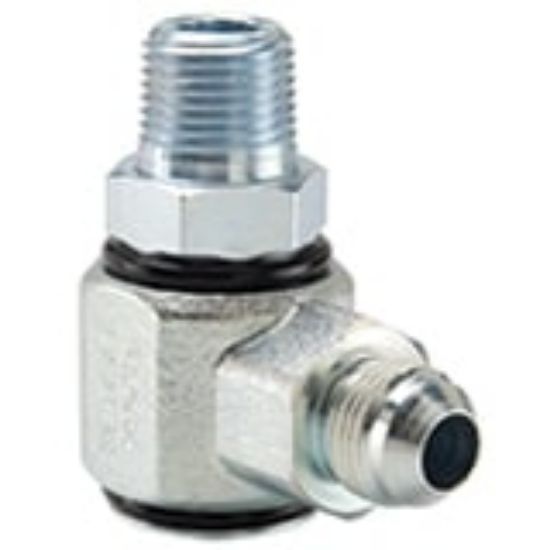

S2103-8-8 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	14 in stock

SKU S2103-8-8

$133.11/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Male NPTF
Shaft Connection Thread Size (inch)	1/2 - 14 NPTF	Housing Connection Style	Male JIC 37 degree
Seal Material	Nitrile	Plating	Zinc with clear trivalent chromate
Housing Connection Thread Size (inch)	3/4 - 16 UNF	Minimum Operating Temperature	-40 °F
Configuration	90 degree	Dimensional Weight	0.12464028776978417 lb
Body Material	Steel	Maximum Operating Pressure	3000 psi
Maximum Operating Speed	10 RPM	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division
