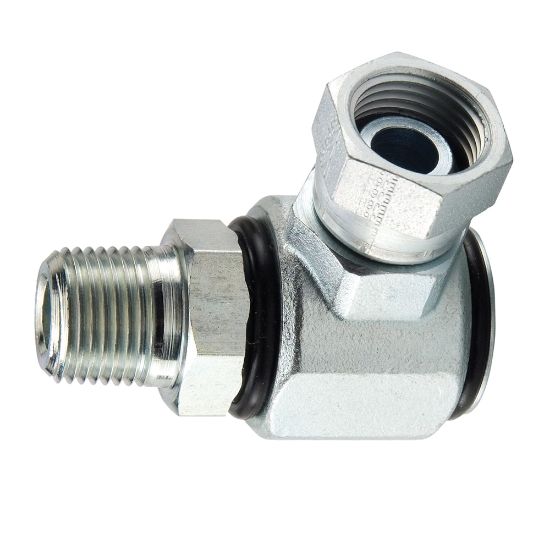

S2107-4-4 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	13 in stock

SKU S2107-4-4

$130.74/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Style	Female NPSM Pipe Swivel
Shaft Connection Thread Size (inch)	1/4 - 18 NPTF	Plating	Zinc with clear trivalent chromate
Shaft Connection Style	Male NPTF	Housing Connection Thread Size (inch)	1/4 - 18 NPSM
Seal Material	Nitrile	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.12464028776978417 lb	Configuration	90 degree
Body Material	Steel	Maximum Operating Pressure	3000 psi
Maximum Operating Speed	10 RPM	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division
