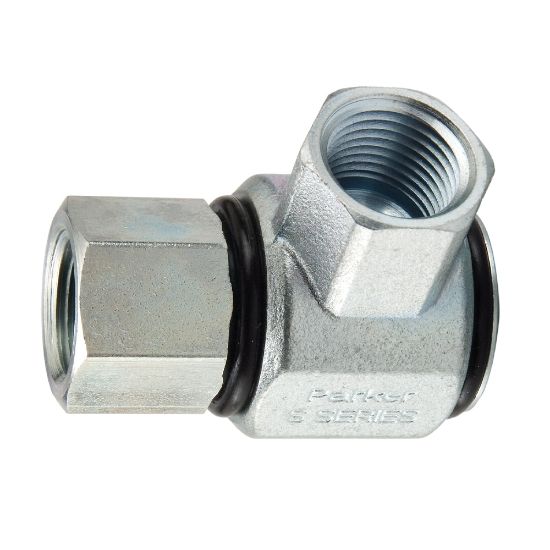

S2202-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU S2202-12-12

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Thread Size (inch)	3/4 - 14 NPTF
Plating	Zinc with clear trivalent chromate	Housing Connection Style	Female NPTF
Shaft Connection Thread Size (inch)	3/4 - 14 NPTF	Seal Material	Nitrile
Shaft Connection Style	Female NPTF	Configuration	90 degree
Maximum Operating Pressure	3000	Body Material	Steel
Division	Quick Coupling Division	Maximum Operating Speed	10
Maximum Operating Temperature	250	Minimum Operating Temperature	-40
