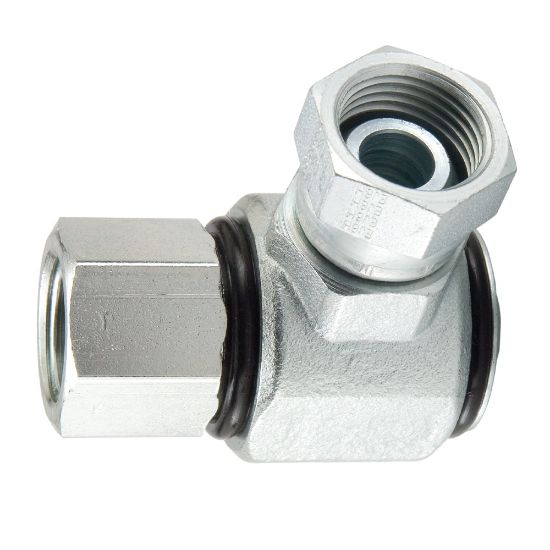

S2207-8-8 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU S2207-8-8

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Female NPTF
Housing Connection Style	Female NPSM Pipe Swivel	Plating	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	1/2 - 14 NPTF	Housing Connection Thread Size (inch)	1/2 - 14 NPSM
Seal Material	Nitrile	Configuration	90 degree
Maximum Operating Pressure	3000 psi	Body Material	Steel
Maximum Operating Speed	10 RPM	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
