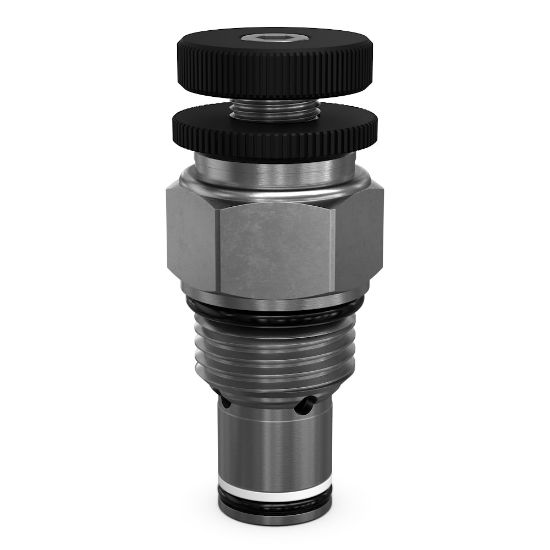

FA101T - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FA101T

$145.51/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Configuration	Reverse Check
Maximum Flow Rate	5.5 GAL/MIN, 20.6 L/MIN	Flow Rate Display Range	0.2-5.5 GAL/MIN, 0.75-20.6 L/MIN
Standard Flow Rate Setting	N/A	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	20.6 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Seal Material	Nitrile
Maximum Inlet Pressure Rating	210 bar	Valve Material	All parts steel. All operating parts hardened steel
Connection Size	N/A	Flow Rate Accuracy	N/A
Maximum Operating Pressure	210 bar	Weight	0.23 kg
Body Material	N/A	Installation Torque	22 (Aluminum), 65 (Steel) Nm
Connection Type	N/A	Standard Flow Rate Setting	N/A L/min
Operation Type	Manually operated	Division	Hydraulic Systems Division
Flow Rate	20.6 L/min	Flow Rate Display Range	0.2-5.5 Gal/min
Actuation Type	Pressure Compensated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Reverse Check	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-35 to +121 °C	Function	Flow Control
Minimum Operating Temperature	-35 °C	Adjustment Mechanism	Tamper Resistant
Cavity Size	C10-2
