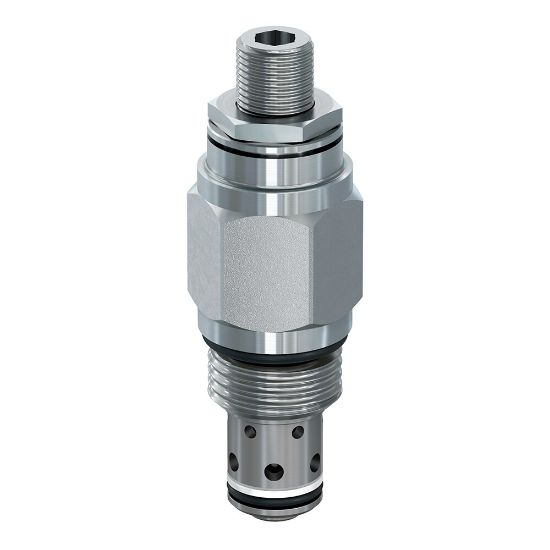

FC101K100V - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FC101K100V

$171.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Knob	Standard Flow Rate Setting	1 GAL/MIN, 3.8 L/MIN
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Flow Rate Display Range	0.75-2.2 GAL/MIN, 2.8-8.3 L/MIN
Configuration	Reverse Check	Flow Rate Accuracy	N/A
Weight	0.23 kg	Operation Type	Manually operated
Division	Hydraulic Systems Division	Body Material	N/A
Installation Torque	22 Nm	Connection Type	N/A
Standard Flow Rate Setting	1 Gal/min	Flow Rate	15 Gal/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Reverse Check
Maximum Operating Pressure	245 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-15 to +400 °F	Actuation Type	Pressure Compensated
Flow Rate Display Range	2.8-8.3 L/min	Minimum Operating Temperature	-26 °C
Adjustment Mechanism	Knob	Cavity Size	C10-2
Maximum Flow Rate	15 Gal/min	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+204 °C	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	245 bar	Connection Size	N/A
Function	Flow Control
