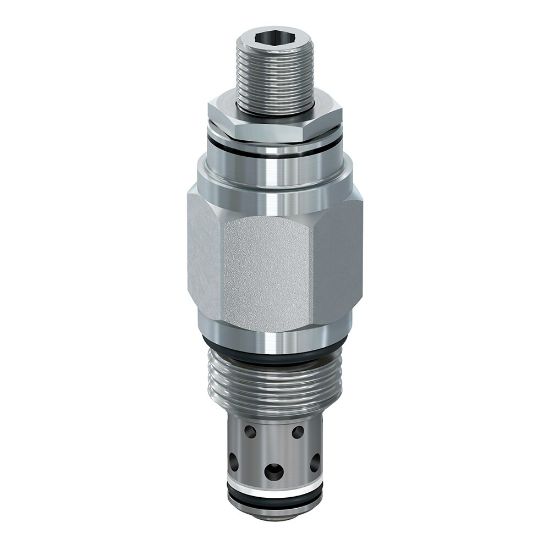

FC101K600V - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FC101K600V

$171.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Configuration	Reverse Check	Standard Flow Rate Setting	6 GAL/MIN, 22.5 L/MIN
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Flow Rate Display Range	4-8 GAL/MIN, 15-30 L/MIN
Seal Material	Fluorocarbon	Flow Rate Display Range	4-8 Gal/min
Minimum Operating Temperature	-26 °C	Operating Temperature	-26 to +204 °C
Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Reverse Check	Function	Flow Control
Connection Size	N/A	Adjustment Mechanism	Knob
Cavity Size	C10-2	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	15 Gal/min	Division	Hydraulic Cartridge Systems Division
Connection Type	N/A	Standard Flow Rate Setting	6 Gal/min
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	3500 psi
Actuation Type	Pressure Compensated	Body Material	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate Accuracy	N/A
Weight	0.23 kg	Maximum Operating Pressure	3500 psi
Division	Hydraulic Systems Division	Installation Torque	22 Nm
Operation Type	Manually operated
